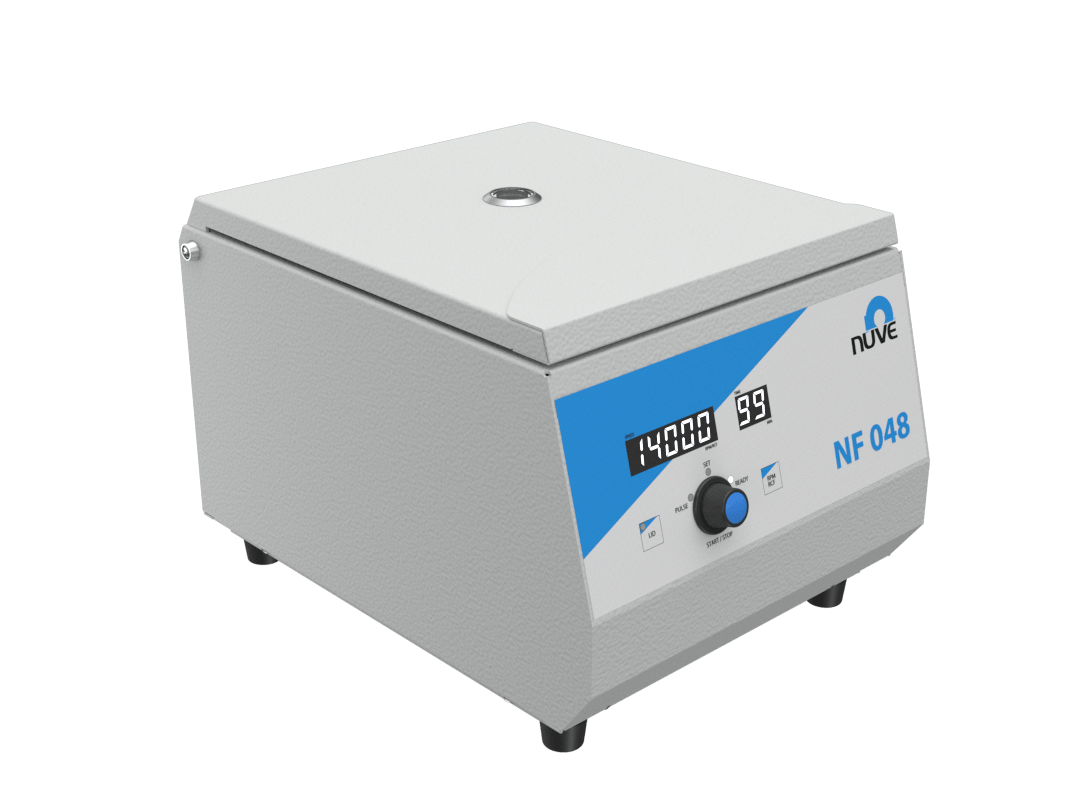

NF 048
MICROLITRES & HAEMATOCRIT CENTRIFUGEAccepts all microtubes and capillariesN-Prime™
NF 048 is two centrifuges in one. As a haematocrit centrifuge, NF 048 comfortably handles all protocols.
A quiet induction motor takes the rotors to maximum speed in a short time and a series of adaptors ensures that all types of microtubes can be accommodated in the same rotor, saving time and space by avoiding the need to change rotors.
DETAILS
One compact centrifuge offering two different rotors for wide range of applications
Two large LED displays for speed/RCF and time
Adaptors for 500/800 μl, 200 μl PCR, 250/400/700 μl
Choice of 24x1,5/2 ml Angle Rotor and 24xcapillary tube haematocrit rotor
Angle rotor operating at over 18.000xg responds to the needs of molecular biologists, biochemists and covers multiple applications
N-Prime™ programmable microprocessor control system for accurate and reliable operations
Easy programming with one button, just turn and push
Possibility of programming RCF
Pulse key for short centrifugation requirements
Reduced temperature increase in the chamber by means of continuous air cooling through air channel in the lid
Quite brushless induction drive
Safety ensured by steel body, lid and chamber, lid locking system and motor overtemperature protection
Haematocrit rotor to determine haematocrit volume by the centrifugation of blood samples in capillary tubes
360°
TECHNICAL SPECIFICATIONS
| NF 048 | |
|---|---|---|
Rotors | Microlitre Angle Rotor | Haematocrit Rotor |
Maximum Speed | 14.000 rpm | 12.000 rpm |
Maximum RCF | 18.188xg | 14.811xg |
Tube Capacity | 24 x 1,5/2 ml | 24 x Capillary Tubes |
Control System | N-Prime™ Programmable Microprocessor Contro | |
Speed Set Range | 1.000 – 14.000 rpm | |
Speed Set Step | 10 rpm | |
Timer Set Range | 1-99 Minutes and Hold Position | |
Timer Set Step | 1 minute | |
Motor | Induction Motor | |
Body, Lid and Chamber | Epoxy-Polyester Powder Coated Steel | |
OPTIONS & ACCESSORIES
Code | Rotor Type | Capacity | Max. Tube Dia. (mm) | Radius (mm) | Max. Speed (rpm) | Max. RCF (xg) |
|---|---|---|---|---|---|---|
B 50 019 | Angle | 24x1,5 /2 ml | 11 | 83 | 14.000 | 18.188 |
B 50 020 | Haema-tocrit | 24 x Capillary Tubes | 1,6 | 92 | 12.000 | 14.811 |
|
Code |
Tube Type |
Max. Tube Dia. (mm) |
|---|---|---|
|
A 14 005 |
500/800 µL |
8 |
|
A 14 006 |
200 µL PCR |
6,5 |
|
A 14 007 |
250/400/700 µL |
6 |
