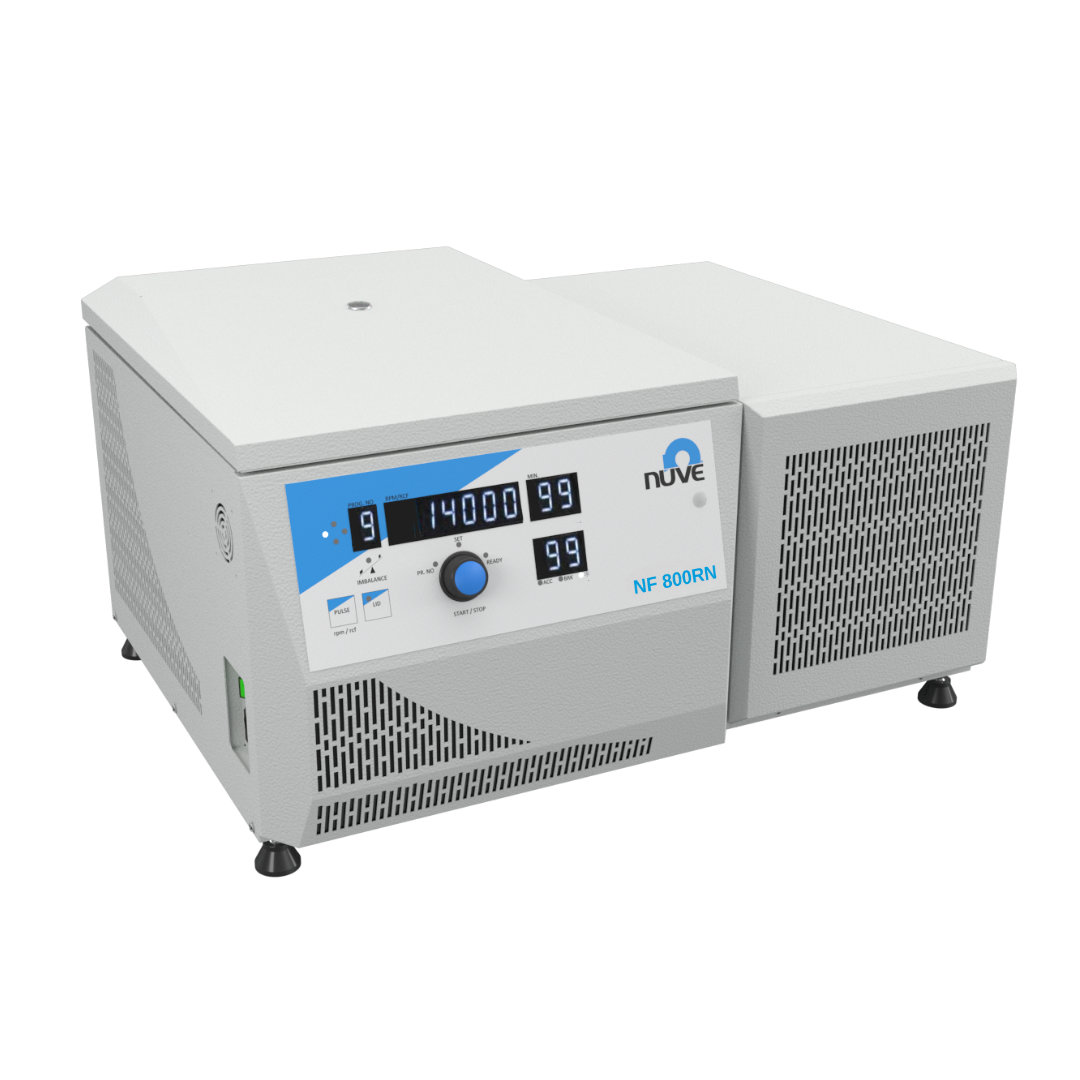

NF 800RN
ENVIRONMENT FRIENDLYMULTI-PURPOSE DESKTOP CENTRIFUGE
NF 800RN is an innovative tabletop centrifuge that combines low and high speed applications in a single device, which can be used in a wide range of applications, from hospitals to university laboratories, from biotechnology research to drug development and quality control processes.
Powered by the new generation R290 natural refrigerant, NF 800RN is the perfect solution for sustainable laboratory applications with its environmentally friendly structure.
DETAILS
- Renewed eco-friendly design
- Possibility of use with 5 different rotors
- N-Prime™ programmable microprocessor control system for accurate and reliable operations.
- Stainless steel chamber
- 1-99 minutes with hold position.
- 10 acceleration / 10 braking rates.
- 10 program memories.
- Easy programming with one button, just turn and push.
- Rotor recognition feature that prevents the rotor from exceeding its maximum allowed speed when the wrong rotor is selected
R290 natural refrigerant
Maximum cooling performance with minimum amount of refrigerant
Thanks to the powerful cooling system, the temperature can be programmed between -9°C and +40°C.
Ability to work by entering speed and RCF value
Four separate digital displays for programmable parameters
- Quiet, powerful and maintenance-free induction motor
- CFC-free refrigerant and insulation material
- Gas line and electronic components positioned in separate sections
- Rotor overspeed protection
- Air channel design prevents engine overheating
- Electronic imbalance detector
- A wide range of accessories suitable for the most commonly used tubes
TECHNICAL SPECIFICATIONS
|
|
NF 800RN |
|
|---|---|---|
|
Maximum Speed |
Swing-out Rotor: 4.100 rpm Angle Rotor: 14.000 rpm |
|
|
Maximum RCF |
Swing-out Rotor: 3.045xg Angle Rotor: 18.405 xg |
|
|
Tube Capacity |
Swing-out Rotor: 4x200 ml Angle Rotor: 6x50 ml |
|
|
Control System |
N-PrimeTM Programmable Microprocessor Control |
|
|
Speed Set Range |
500-14.000 rpm |
|
|
Speed Set Step |
10 rpm |
|
|
Speed Control Accuracy |
± 20 rpm |
|
|
Timer Set Range |
1-99 minutes and hold position |
|
|
Timer Set Step 1 minute |
1 minute |
|
|
Acceleration/Braking Rates |
10/10 |
|
|
Temperature Range |
-9°C / +40°C |
|
|
Temperature Set Step |
1°C |
|
|
Motor |
Induction Motor |
|
|
Body and lid |
Epoxy-polyester Powder Coated Steel |
|
|
Chamber |
Stainless Steel |
|
OPTIONS & ACCESSORIES
|
Code |
Rotor |
Description |
Capacity |
Max. Tube Dia. (mm) |
Radius (mm) |
Max. Speed (rpm) |
Max. RCF (xg) |
|---|---|---|---|---|---|---|---|
|
B 50 058 |
RA 200 |
Swing-out rotor |
4x200 ml |
|
162 |
4.100 |
3.045 |
|
G 51 026 |
|
Set of 4 buckets |
200 ml |
57 |
|
|
|
|
G 51 033 |
|
Set of 4 buckets with sealing cap |
200 ml |
57 |
|
|
|
|
G 51 032 |
|
Set of 4 PP bottles with cap |
200 ml |
56,5 |
|
|
|
|
G 51 031 |
|
Set of 4 inserts |
1x100 ml |
45 |
|
|
|
|
G 51 030 |
|
Set of 4 inserts |
1x50 ml conical |
30 |
|
|
|
|
G 51 028 |
|
Set of 4 inserts |
7x15 ml |
17 |
|
|
|
|
G 51 029 |
|
Set of 4 inserts |
3x15 ml conical |
17 |
|
|
|
|
G 51 027 |
|
Set of 4 inserts |
7x5/7 ml |
13,5 |
|
|
|
|
B 50 052 |
MP 200 |
Microtitre plate rotor |
2x3 microtitre plate |
|
125 |
4.100 |
2.349 |
Note: 200 ml bottles do not require inserts
|
Code |
Rotor |
Description |
Capacity |
Max. Tube Dia. (mm) |
Radius (mm) |
Max. Speed (rpm) |
Max. RCF (xg) |
|---|---|---|---|---|---|---|---|
|
B 50 057 |
RS 300 |
Angle rotor |
6x50 ml |
29,5 |
104 |
9.000 |
9.418 |
|
G 51 024 |
|
Set of 6 adaptors |
1x15 ml conical |
17 |
|
|
|
|
G 51 025 |
|
Set of 6 rubber base adaptors for conical tube |
1x50 ml conical |
29,5 |
|
|
|
|
B 50 059 |
RS 450 |
Angle rotor |
30x15 ml |
17 |
160 |
4.100 |
3.007 |
|
G 03 057 |
|
Adaptor |
1x1,5/2 ml |
11 |
|
|
|
|
G 03 014 |
|
Adaptor |
1x7 ml |
13 |
|
|
|
|
G 03 015 |
|
Adaptor |
1x5 ml |
13 |
|
|
|
|
B 50 050 |
RS 24 |
Angle rotor with lid |
24x1,5/2 ml |
11 |
84 |
14.000 |
18.405 |
|
A 14 005 |
|
Adaptor |
1x500/ 800 μl |
8 |
|
|
|
|
A 14 006 |
|
Adaptor |
1x200 μl PCR |
6,5 |
|
|
|
|
A 14 007 |
|
Adaptor |
1x250/ 400/ 700μl |
6 |
|
|
|
